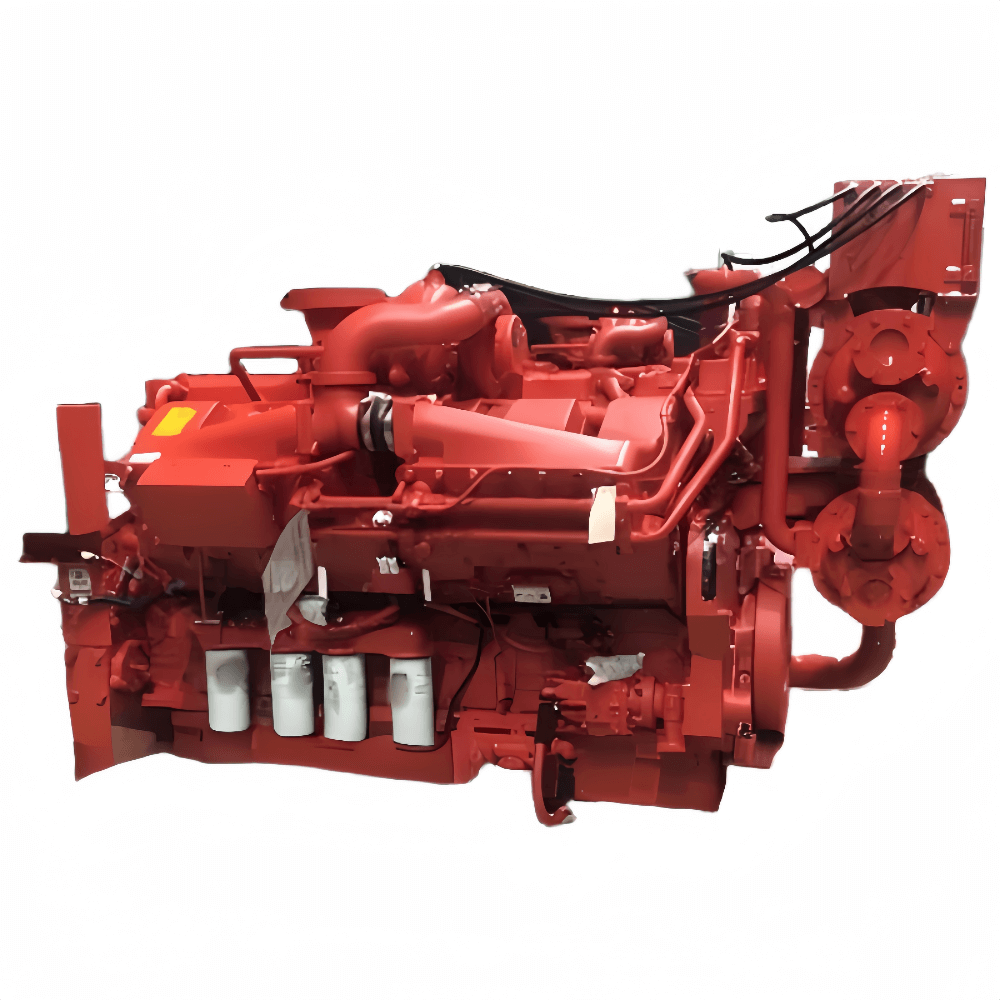

KTA38-M2 1200 HP – General Information
- Model: Cummins KTA38 895KW 1200HP Marine Diesel Engine
- Type: 12 Cylinders, V Type, 4 strokes
- Displacement: 38 L
- Bore * Stroke: 159 * 159
- Net Weight (with flywheel & alternator): 4538 Kg
- Overall Dimension: 2152mm*1462mm*2083mm
- Manufacture Plant: Chongqing Cummins Plant
KTA38-M2 1200 HP – Performance Data
- Rated Power/Speed: 895 kW/1200HP
- Rated Speed: 1800 rpm
- Rating Type: Continuous Running
- Max Torque/Speed: 5210 N.m @ 1500 rpm
- Low Idle Speed: 625-675 rpm
- High Idle Speed: 1815-2106 rpm
- Fuel Consumption (Running Speed): 224 L/hr
KTA38-M2 1200 HP – Technical Specification
- Certification: CCS/IMO Certificates
- Aspiration: Turbocharged/Aftercooled
- Fuel System: Cummins Pressure Time (PT Pump)
- Starting System: Electrical Start (24V)
- Governor Type: Mechanical Control
- Compression Radio: 13.9:1
- Lowest Starting Temp Without auxiliary system: -12℃
- Cooling Method: Sea water pump, Heat exchanger, Water cooled
